Hydraulic symmetrical rolling machine

Home / Product center / 3-Rollers Mechanical Rolling Machine / Hydraulic symmetrical rolling machine

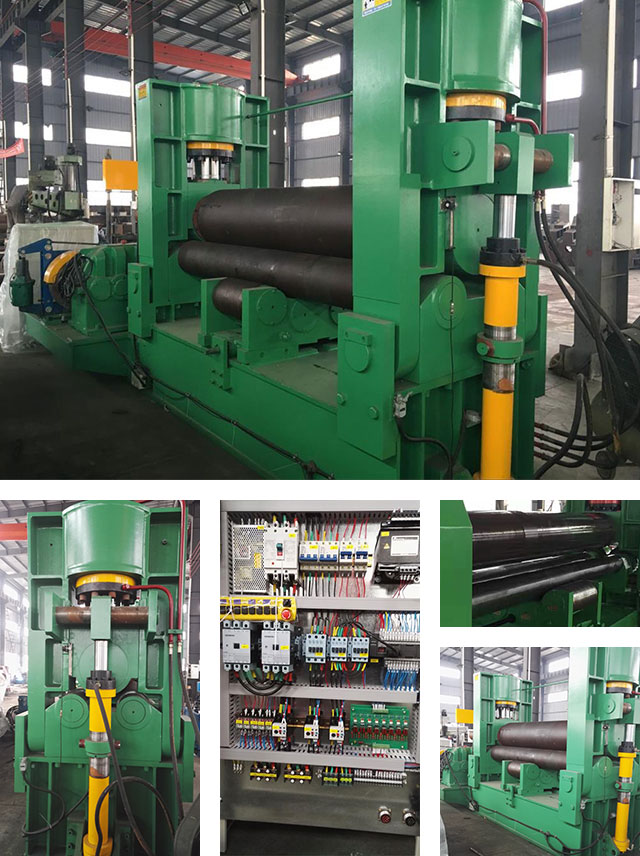

Hydraulic symmetrical rolling machine

PERFORMANCE FEATURES:
1、The construction of this machine is in the form of three roller symmetry.
2、The top roller in the central symmetrical position over the two bottom rollers does vertical motion up and dow through screw,nut and worm transmission.
3、The two lower rollers rotates and provide the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.
4、The construction of the machine is compact and the operation and maintenance is convenient.

Technical parameter:

規格型號 Specification	最大卷板厚度 Max. thickness of coiled plate (mm)	最大卷板寬度 Max. widthof coiled plate(mm)	板材屈服極限 Yielding limit ofsheet metal(Mpa)	卷板速度 Coiling speed (m/min)	上輥直徑 Diameter of upper roller (mm)	主電機功率 Motor power (kW)	液壓電機功率 Hydraulic pow(kW)
30×2000	30	2000	245	4	360	22	7.5
25×2500	25	2500	245	4	370	22	7.5
30×2500	30	2500	245	4	420	30	11
25×3000	25	3000	245	4	430	30	11
30×3000	30	3000	245	4	450	30	11
40×2500	40	2500	245	3.5	500	37	15
40×3000	40	3000	245	3.5	540	45	18.5
50×3000	50	3000	245	3.5	580	55	22
60×3000	60	3000	245	3.5	660	75	30
70×3000	70	3000	245	3.5	710	90	37
80×3000	80	3000	245	3.5	770	90	37
90×3000	90	3000	245	3.5	820	110	45
100×3000	100	3000	245	3.5	860	110	45
110×3000	110	3000	245	3.5	900	132	55
120×3000	120	3000	245	3.5	950	132	55
