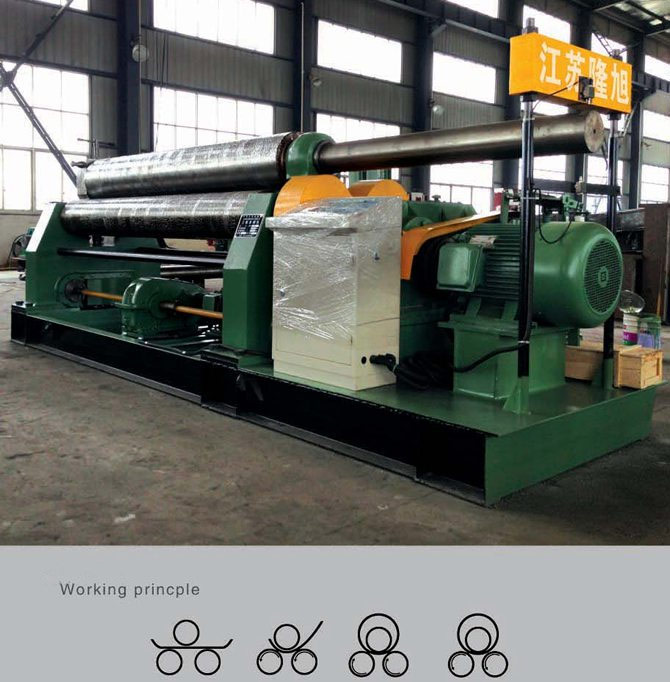

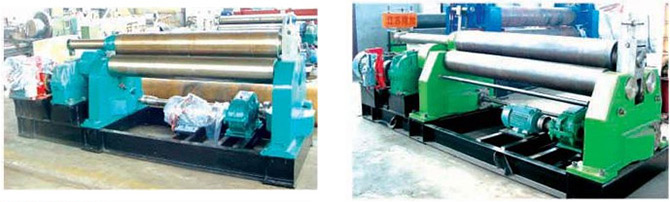

W11 mechanical 3 rollers symmetrical rolling machine

Home / Product center / 3-Rollers Mechanical Rolling Machine / W11 mechanical 3 rollers symmetrical rolling machine

W11 mechanical 3 rollers symmetrical rolling machine

PERFORMANCE FEATURES:
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers.
Which is achieved through the lead screw the two lower rollers rotates and provide the plate materials with torque.
Through the engagement of the output gear of the moderator with the gear of the lower rollers.
Technical parameter:

規(guī)格型號 Specification	最大卷板厚度 Max. thickness of coiled plate (mm)	最大卷板寬度 Max. widthof coiled plate(mm)	板材屈服極限 Yielding limit ofsheet metal(Mpa)	卷板速度 Coiling speed (m/min)	上輥直徑 Diameter of upper roller (mm)	主電機(jī)功率 Motor power (kW)
4×1500	4	1500	245	5	150	3
6×1500	6	1500	245	5	160	4
6×2000	6	2000	245	4.5	170	5.5
6×3200	6	3200	245	4.5	220	7.5
8×2000	8	2000	245	4.5	185	5.5
8×2500	8	2500	245	4.5	240	7.5
12×2000	12	2000	245	4.5	240	7.5
12×2500	12	2500	245	4.5	260	11
12×3000	12	3000	245	4	280	11
16×2000	16	2000	245	4	260	11
16×2500	16	2500	245	4	280	15
16×3200	16	3200	245	4	340	18.5
20×2000	20	2000	245	4	280	15
20×2500	20	2500	245	4	340	18.5
25×2000	25	2000	245	4	330	18.5
25×2500	25	2500	245	4	370	22
30×2500	30	2500	245	4	420	30
30×3000	30	3000	245	4	450	37
