Upper Roller Universal Plate Rolling Machine

Home / Product center / Upper Roller Universal Plate Rolling Machine / Upper Roller Universal Plate Rolling Machine

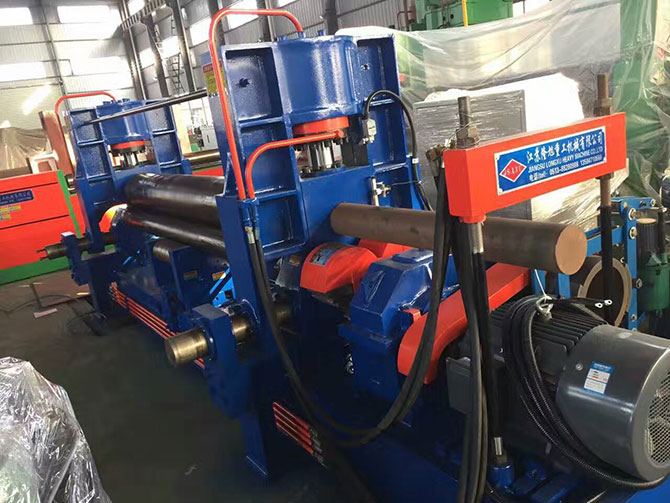

Upper Roller Universal Plate Rolling Machine

STRUCTURE AND PERFORMANCE FEATURES:
1、Superior product percision.
2、Unique bending process,high precision end pre bending,Continuous bending without angle digital control of bending process.
3、Man-machine conversation control interface,intellingent and effcient operation.
4、Physical bending process software, man-machine conversation window.
5、Single operation,high effcient ,safe and covenient.
6、Rich bending shapes,such as O,U,R shape.
7、Various choice of machine type,There are economic CNC machine and TWL CNC machine for customer to choose according to their own requirement.

Technical parameter

Model	Pressureonthe upperroller （Tons）	Max. plate thickness		Plate width	Diameter ofupperroller （mm）	Diameter oflowerroller （mm）	Central distance （mm）	Motor（kW）
Model	Pressureonthe upperroller （Tons）	Pre bending （mm）	Central （mm）	Plate width	Diameter ofupperroller （mm）	Diameter oflowerroller （mm）	Central distance （mm）	Driving	Hydraulic	Shift
W11S-45*3000	540	40	45	3000	590	340	610	55	22	11
W11S-40*4000	540	35	40	4000	630	340	610	55	22	11
W11S-36*5000	540	30	36	5000	670	340	610	55	22	15
W11S-32*6000	540	28	32	6000	700	340	610	55	22	15
W11S-55*3000	610	45	55	3000	620	360	650	75	30	15
W11S-45*4000	610	40	45	4000	660	360	650	75	30	15
W11S-40*5000	610	32	40	5000	700	360	650	75	30	15
W11S-36*6000	610	30	36	6000	730	360	650	75	30	15
W11S-60*3000	690	50	60	3000	650	380	700	75	30	15
W11S-50*4000	690	45	50	4000	700	380	700	75	30	15
W11S-45*5000	690	38	45	5000	740	380	700	75	30	15
W11S-40*6000	690	35	40	6000	760	380	700	75	30	15
W11S-70*3000	850	60	70	3000	710	420	780	75	37	15
W11S-55*4000	850	50	55	4000	750	420	780	90	37	15
W11S-50*5000	850	42	50	5000	790	420	780	90	37	15
W11S-45*6000	850	38	45	6000	820	420	780	90	37	15
W11S-75*3000	930	65	75	3000	740	440	820	90	37	15
W11S-60*4000	930	55	60	4000	780	440	820	90	37	15
W11S-55*5000	930	45	55	5000	820	440	820	90	37	18.5
W11S-50*6000	930	42	50	6000	850	440	820	90	37	18.5
W11S-80*3000	1050	70	80	3000	770	460	880	90	37	18.5
W11S-65*4000	1050	60	65	4000	810	460	880	90	37	18.5
W11S-60*5000	1050	50	60	5000	850	460	880	90	37	18.5
W11S-55*6000	1050	45	55	6000	890	460	880	90	37	18.5
W11S-85*3000	1150	75	85	3000	800	480	920	110	45	18.5
W11S-70*4000	1150	65	70	4000	840	480	920	110	45	18.5
W11S-65*5000	1150	55	65	5000	890	480	920	110	45	22
W11S-60*6000	1150	50	60	6000	930	480	920	110	45	22
W11S-100*3000	1350	90	100	3000	860	480	920	110	45	22
W11S-80*4000	1350	75	80	4000	900	520	1000	110	45	22
W11S-70*5000	1350	65	70	5000	940	520	1000	110	45	22
W11S-65*6000	1350	60	65	6000	980	520	1000	110	45	22
W11S-115*3000	1600	100	115	3000	900	560	1080	132	55	30
W11S-100*4000	1600	85	100	4000	940	560	1080	132	55	30
W11S-125*3000	1800	110	125	3000	960	600	1120	160	75	37
W11S-110*4000	1800	95	110	4000	990	600	1120	160	75	37
W11S-120*4000	2300	100	120	4000	990	640	1280	150	55	37
