4 rollers rolling machine

Home / Product center / 4-Rollers Rolling Machine / 4 rollers rolling machine

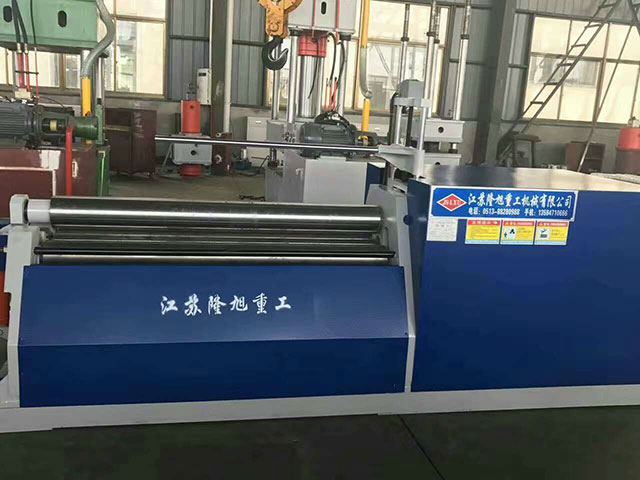

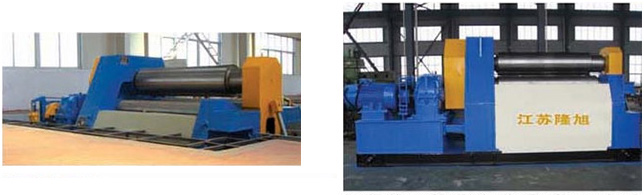

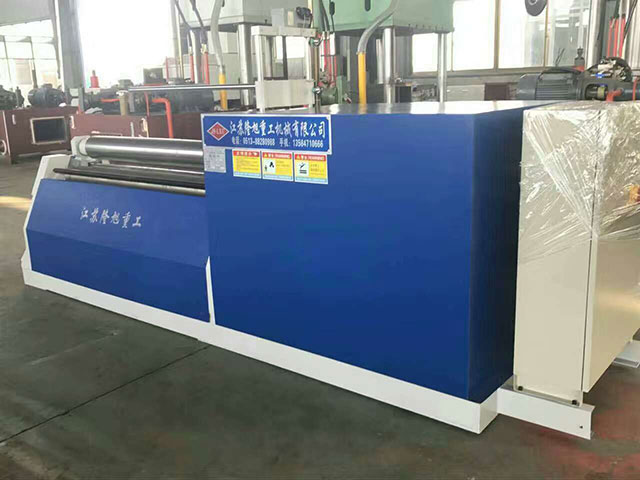

4 rollers rolling machine

Performance:
1、Computer optimized design,3-beam,4-column structure, simple but with high performance price ratio.

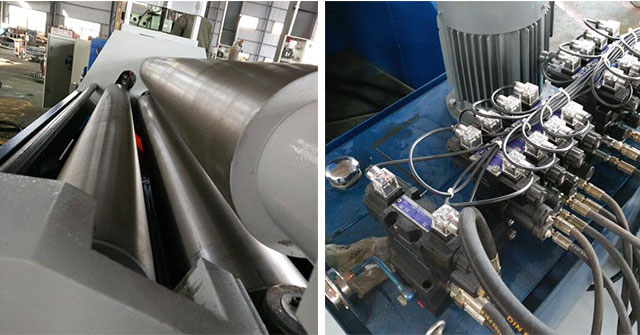

2、Cartridge valve integral unit equipped for hydraulic control system,reliable,durable, and less hydraulic shock,with shorter connection pipeline and fewer releases points.
3、Independent electrical control,reliable,audio-visual and convenient for maintenance.
4、Centralized button control system,with adjustment,hand and semi-auto operation modes at operator's choice.
5、Fixed stroke forming process or fixed pressure forming process selected through control panel,with pressure hold and time delay functions.
6、The operating force,no-load traveling and,low-speed movement and travel range can be adjusted subject to technological requirements.
Technical parameters:

規格型號 Model	卷板最大厚度Max. thick ness of coiled plate （mm）	卷板最大寬度Max. width of coiled plate （mm）	卷板屈服極限Yield ing limit of sheet meta （mm ）	卷板速度Coil ing speed （m/ min ）	滿載最小直徑Min. full loading diameter of coiled plate （mm）	上輥直徑Diameter of upper roller （mm）	下輥直徑Diameter of bottom roller （mm）	側輥直徑Diameter of side roller (mm )	側輥?zhàn)畲笮谐蘉aximum stroke of side roller(mm)	側輥調整速度Adjusting speed of side roll(m/min )	主電機功率Power of main motor （kW）
W12－25*2000	25	2000	245	4	800	350	320	240	240	80	22
W12－20*2500	20	2500	245	4	640	350	320	240	240	80	30
W12－30*2000	30	2000	245	4	1000	400	360	240	240	80	37
W12－25*2500	25	2500	245	4	800	400	360	240	240	80	37
W12－35*2000	35	2000	245	4	1200	420	380	210	210	80	37
W12－30*2500	30	2500	245	4	1000	400	360	230	230	80	37
W12－40*2000	40	2000	245	4	1400	480	400	420	420	80	45
W12－45*2000	45	2000	245	4	1600	500	450	280	280	80	45
W12－35*2500	35	2500	245	4	1200	480	400	420	420	80	45
W12－40*2500	40	2500	245	4	1400	500	450	380	380	80	45
W12－45*2500	45	2500	245	4	1600	530	480	450	450	80	63
W12－35*3000	35	3000	245	4	1200	500	450	380	380	80	45
W12－45*3000	45	3000	245	4	1600	560	500	450	450	80	63
W12－55*2500	55	2500	245	4	2000	600	550	500	500	78	75
W12－55*3000	55	3000	245	4	2000	620	560	500	500	78	75
W12－65*3000	65	3000	245	4	2400	670	600	550	550	78	110

Previous: 4 rollers rolling machine Next: Double drive four-roller plate rolling machine return
